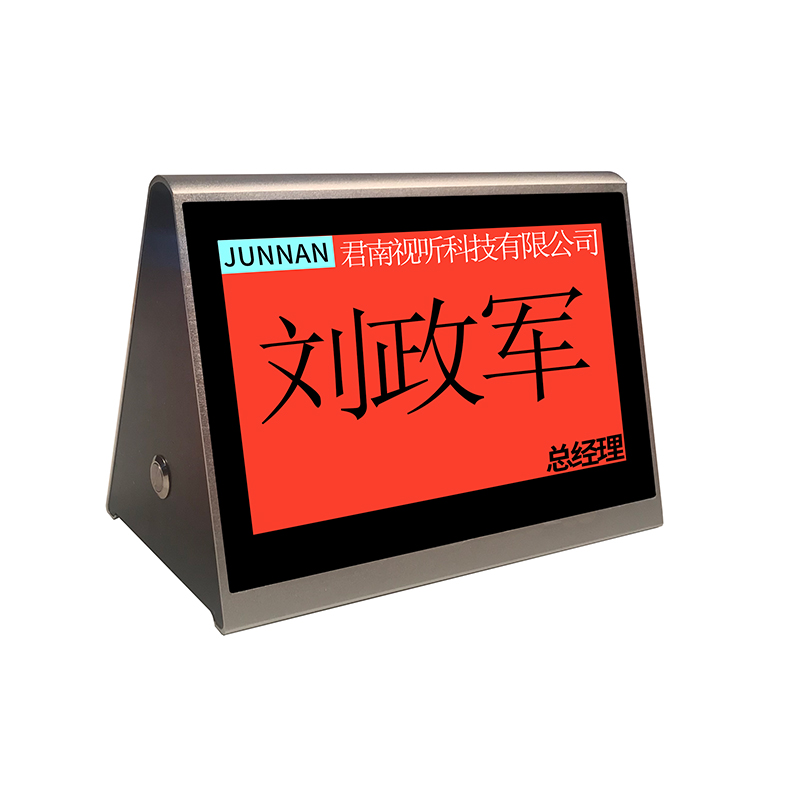

◆Double-sided 7-inch IPS display with a resolution of 1024*600.
Parameter information:
1. Double-sided 7-inch IPS display with a resolution of 1024*600;
2. Adopt 4-core 1.6G high-performance Android system central processing unit for data processing;
3. Support double-sided simultaneous display of Logo, background picture and solid color, unit, name, and position;
4. Support the unified control of the table card unit and the names of the people through the background software, and support the batch import of the list of participants, which can realize the full update of the participants in a few seconds;
5. Support WiFi transmission, support POE wired transmission, support USB import, support stand-alone handwriting modification content, support QR code scanning modification;
6. Support POE power supply, only 24V switch;
7. The built-in polymer battery 10000mah lasts for more than 10 hours;
8. Support background one-key shutdown, restart, sleep, wake up, power off and other functions;
9. Support background WPS document distribution and transmission, and support stand-alone WPS document viewing;
10. Support the voting function, and have a vote countdown, and the background real-time display results;
11. Support terminal conference call service, and real-time reminder and processing results in the background;
12. It can support both POE power supply and built-in battery power supply at the same time;
13. The input voltage is DC12V-2A, the adapter is standard, and the charging box is optional.
Background software installation:
Double-click to install the background software provided by us according to the steps. After the installation is complete, an interface with a QR code as shown in the figure below will appear. Take a photo of the QR code interface to us. At this time, no operation is required, and then we will provide one Registration code, after entering the registration code, the installation is successful.
After the software is successfully installed, you need to close the software and reopen it to use it normally. The software function interface is shown in the figure below:
You can directly right-click in the table card list column, add a column, enter the corresponding terminal IP and display content, click on the column, and you can freely adjust the position and size of the displayed content in the right display area.
When changing the logo, double-click the logo with the left mouse button.
Double-click the left mouse button to display the blank area of the content to change the background image, and double-click the right mouse button to change the background color.
When you need to adjust the font of the corresponding content, right-click on the corresponding font.
The font size can be adjusted by the mouse wheel.
Other functions of the software operate according to the literal meaning of the function buttons.
Terminal function:
The terminal display is divided into a main screen and a secondary screen. The bottom left corner of the main screen has a QR code, IP, and battery power display. The back is the secondary screen.
The main screen has a touch function for stand-alone operation. You can also connect a mouse to the USB port on the side of the terminal and use the mouse to operate the main screen.
Press the QR code on the main screen often to enter the stand-alone content modification mode.
Swipe up from the bottom of the main screen to call out the function button, exit the table card mode, and perform other settings of the terminal.
Swipe from the left edge of the main screen to the right to call out the function bar to view conference documents and conference call services.
Press the terminal switch button, the terminal table card enters the sleep mode, the screen does not display, but the motherboard is still working.
Long press the terminal switch button to turn on and off the terminal table cards.
When charging, it is best to turn off the terminal table cards.
